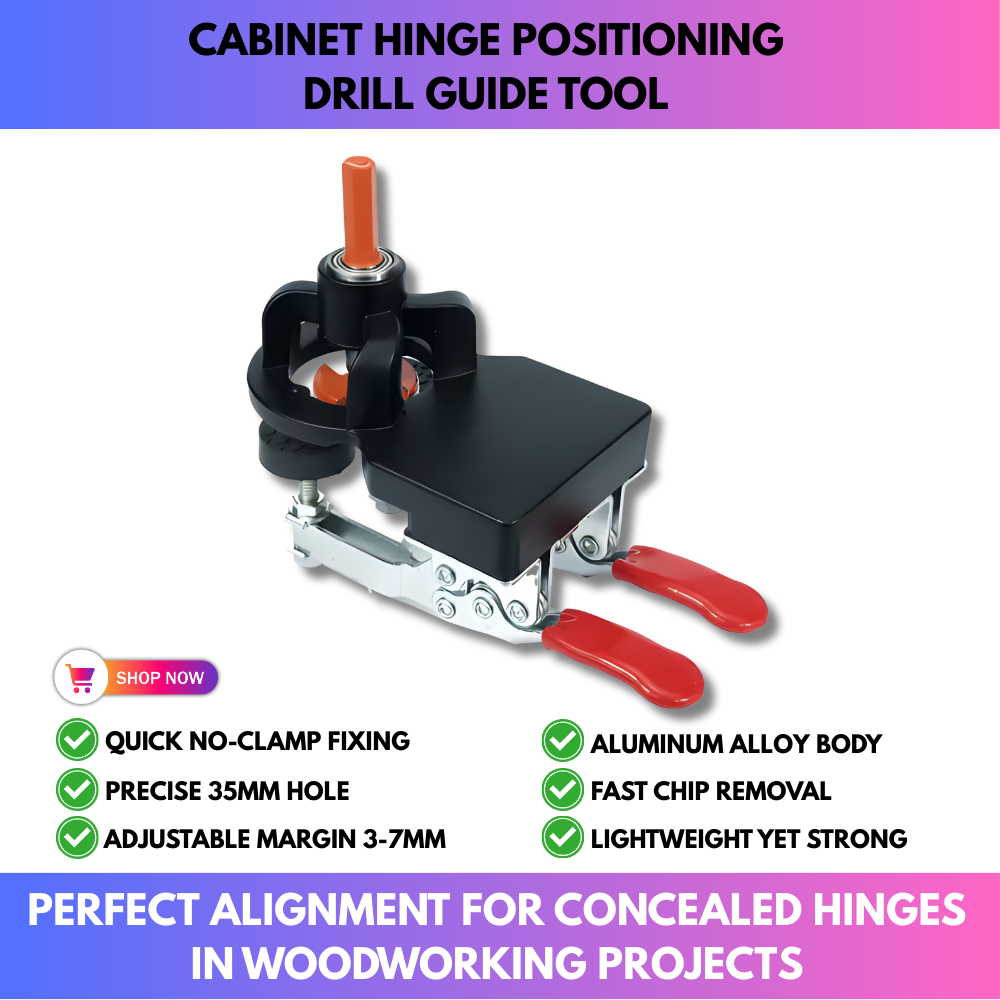

35mm Cabinet Hinge Drilling Jig with Integrated Clamp
This upgraded woodworking jig is designed for the precise installation of 35mm concealed hinges. Unlike standard guides, this model features a built-in double fixture quick-clamping system, eliminating the need for external pliers. Crafted from aluminum alloy, it offers adjustable margin alignment and smooth drilling for professional cabinet door assembly.
Specifications:
Type: 35mm Hinge Hole Locator / Drilling Jig
Material: Aluminum Alloy Body + Stainless Steel Components
Hole Diameter: 35mm (Standard Cup Hinge)
Clamping Capacity (Door Thickness): 15mm – 25mm
Margin Adjustment Range: 3mm – 7mm

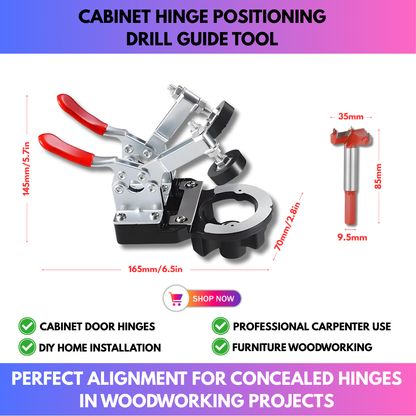

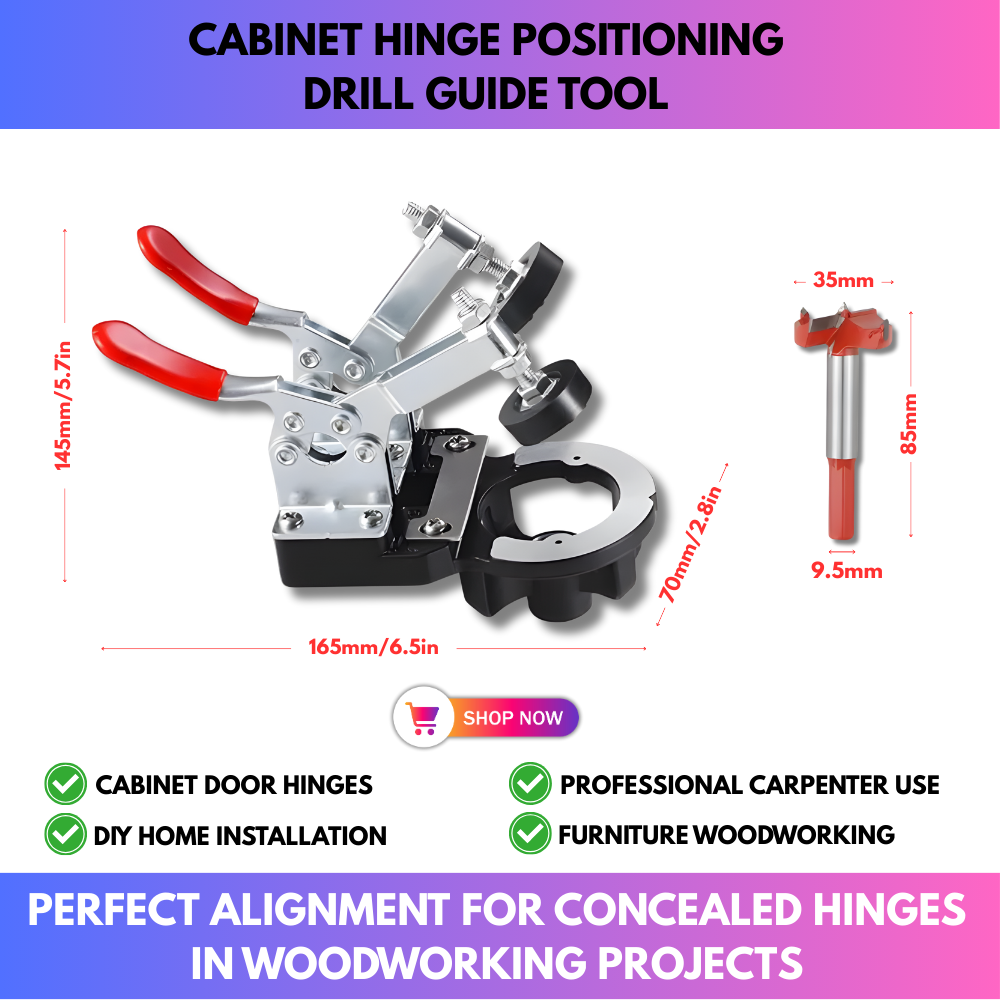

Base Dimensions: 12cm x 5.3cm
Mechanism: Integrated Quick-Locking Double Fixture
Package Includes: 1x Hinge Jig Main Body, 1x 35mm Hole Opener, Accessories
Features:

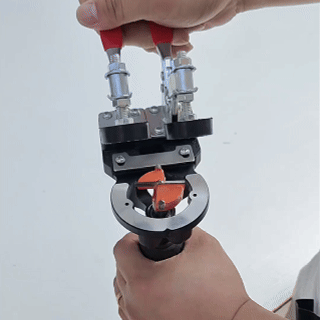

🛠️ Integrated Quick Clamping System – Features a built-in locking mechanism that securely grips the wood board without needing extra clamps or pliers, ensuring stability.

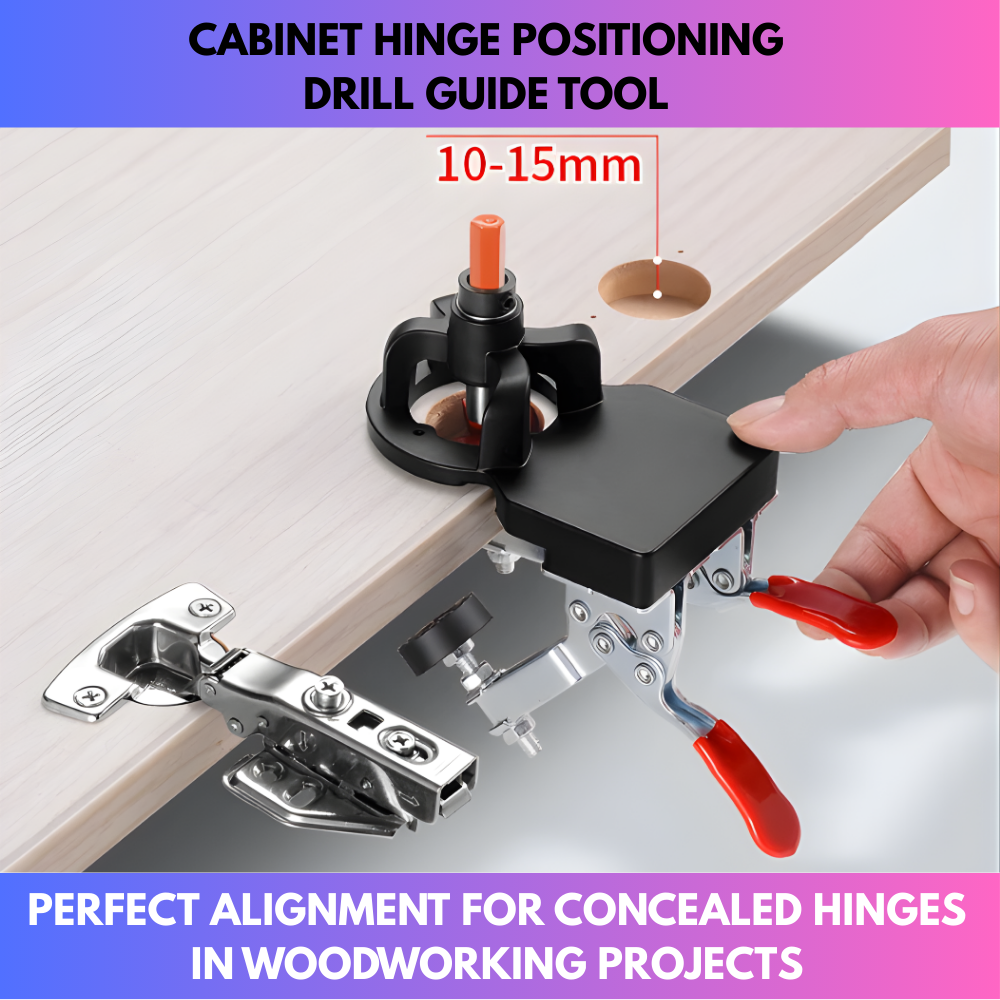

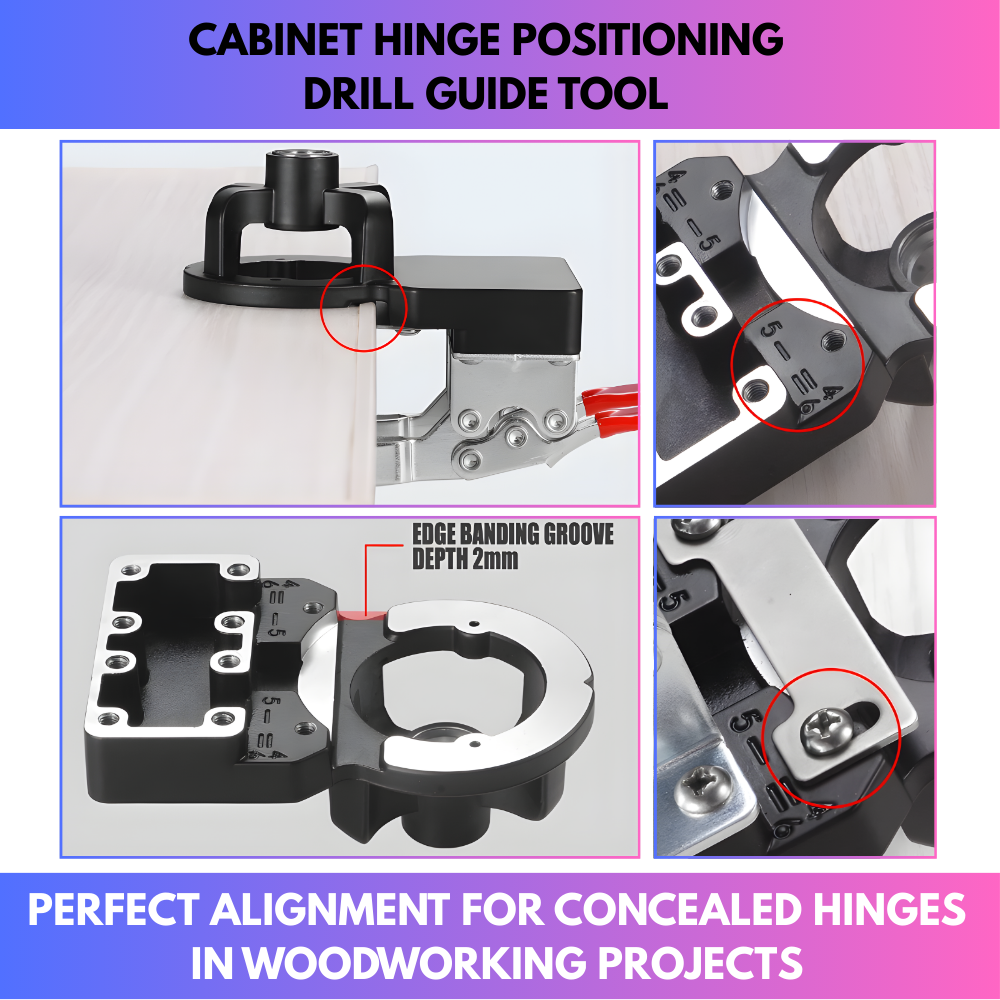

📏 Adjustable Edge Margin – Offers a precise margin adjustment range of 3-7mm, allowing you to position the hinge cup perfectly relative to the door edge.
🌪️ Enhanced Chip Removal – The upgraded fixture design allows for larger, faster, and smoother wood chip evacuation, reducing heat and making drilling labor-saving.
🛡️ Durable Aluminum Alloy – Constructed from a rust-proof aluminum alloy body that is lightweight yet rigid, ensuring long-term precision for woodworking projects.
🚪 Versatile Thickness Compatibility – The adjustable clamping jaw fits a wide range of wooden boards from 15mm to 25mm thick, covering most standard cabinet doors.
Estimated Arrival Time: 7-15 business days.
